Evaluation noise filtering weak OOK signals – RFM69

As explained in a previous post , noise can spoil the reception of OOK signals from remote sensors. One solution to deal with the noise filtering of spikes in the ON/OFF binary signals is to apply a moving average filter of the last n received samples. When n is odd, the “average” is one if more then half the bits in the filter buffer is one, and otherwise zero. With a filter length of n=3 a single outlier sample will not disturb the intended signal. With a filter length of 5, spikes with a duration of two samples can be handled. Clean signals are as snappy as the where, and timings can be determined to the accuracy of the sample rate.

To find the optimal length of the moving average filter, a setup was created with a remote sensor giving a signal that was not received all the time. For each filter length, 100 transmissions where listened to. The graph below shows the success rate as function of the filter length.
433OOK_mov_avg_eval

The binary ON/OFF signal was sampled on the DATA/DIO2 pin of the RFM69 with sample rate 25µs. The bitrate was set to 4000bps. With this setting, the internal sampling rate of the RFM69 is 10µs. This “guarantees” a noisy signal for test purposes. The filter length n=1 is actually unfiltered data at 25µs/sample offered to the decoders. The longest filter length n=15 takes an averaging window of 375µs. This is resiliant to noisy spikes (either ON or OFF) of 7 times the sample rate, thus 175µs. The minimum pulse duration of the received signal, the Oregon Scientific V1 sensor, is about 1100µs, and obviously can stand the long filter periods.

For OOK signals that vary quicker, possibly a shorter filter length should be taken. The shortest pulse durations of OOK sensors and remote controls is around 300µs.

The design of the filter is simply an unbsigned integer, in which the most recent reading (1 or 0) is shifted in from the right. The filter length is enforced by only looking at the least significant n bits. Deciding on the filtered value is a matter of counting the one-bits in the filter.

//moving average buffer, max length = 31!
static uint32_t filter= 0;
static uint8_t avg_len = 7;
static uint32_t sig_mask = (1 << avg_len) - 1;

void receiveOOK() {
    while (....) {
        filter = (filter << 1) | (data_in & 0x01);

        //efficient bit count, from literature
        uint8_t c = 0;
        uint32_t v = filter & sig_mask;
        for (c = 0; v; c++)
        {
          v &= v - 1; // clear the least significant bit set
        }
        uint8_t data_out = (c > (avg_len >> 1)); //bit count moving average

        //decode OOK signal
    }
}

Debugging failure to detect OOK signals

For more remote OOK temperature sensors, occasionally transmissions arrive malformed, and can therefore not be detected as such or properly decoded. The Oregon Scientific THN128 protocol V1 sensor perfoms two transmissions spaced some 200ms apart. When the first transmission is received properly, it is easy to record the raw RSSI and OOK data from a RFM69 during the transmission of the repeated signal. I have recorded two of the transmissions where the first part was succesful, and the second part contained an error.

The errors are in the marked area’s. It appears that such a bit-error is a noise spike that only takes one sample in both cases. Although it is a bit early to proof, it is very likely that failures to detect weak OOK signals are often short time-scale (high frequency) noise on the OOK signal.

Noise

Recording a histogram of all ON and OFF durations of the second transmission, including the preceeding gap after the end of the first transmission gives better insight in the high frequency noise.
rfm69_ook_oscv1_pulse_dur_histo_4000bps_n10

The OFF (ZERO) peak at 1080µs belongs to the received OOK signal. The large distribution at the left hand side of the graph is noise. The red part indicate signal ON (ONE), and tend to be short between 40 and 100µs. For the OFF state the noise tail is a bit longer. It is clear that most noise energy is below the 200µs tiem-scale. Most remote control and sensor OOK pulse durations are above the 300µs time scale, so it should be possible to filter out the high frequency ON/OFF flips to clean-up the signal.

Filtering

So could the reception be improved by getting rid of this type of short spikes on the intended signal? I have been thinking about this. When not using an interupt driven approach to detect ON to OFF and OFF to ON transitions, but by just polling the DATA (DIO2) pin of the RFM69, I can easily implement a kind of moving average filter for the two-valued data. Sampling at for exmaple 40µs and averaging the last 5 samples removes spikes of one and two sample duration. I tested this and it improves the reception of weak signals way better then I expected. I am now collecting more data on the improved performance.

RFM69 OOK internal sampling rate

When the RFM69 is used in continuous OOK mode, the signal can be read from the RFM69 DATA (DIO2) pin. This can be done by polling this line with an ardiuno, jeenode, nucleo STM32 or other MCU. It can also be done interrupt driven by programming interrupts on the rasing and falling edge of the DATA signal. This way accurate timings can be measured. On the nucleo STM32 F103RB with ChibiOS I can measure pulse lengths of OOK signals with an accuracy of one or two microseconds.

I decided to generate some OOK signal (and only noise) histograms to figure out how to deal with some high frequency noise in the OOK signals. I set the OOK bitrate in the RFM to 1000bps as the pulse durations are in the order of one millisecond in the signals I was working with. Then I found that pulse durations I measured were quite discrete. A saw peaks around 40µs, 80µs, etc. Further experimentation revealed that this discretisation internally in the RFM69 depends on the bitrate. With a bitrate of 2000, the peaks occured at 20µs intervals. So I concluded that the internal sampling of OOK signals happens at 25 times the anticipated bitrate (chiprate). More aquirate measurements are required to detemrine the exact periodicity. It could also be 24 times or something like that.

Below are two histograms where the bin size is 10µs, recorded for 30 seconds, with 1000 and 2000 bps.

rfm69_ook_noise_pulse_dur_histo_2000bps

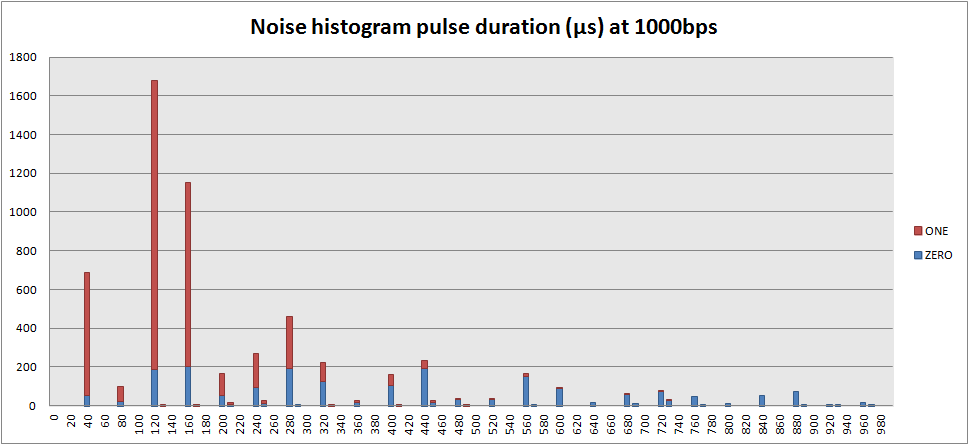

rfm69_ook_noise_pulse_dur_histo_1000bpsIt can be clearly seen that with the lower bitrate also the measured noisy ONES (ON) and ZEORS (OFF) are detected at the 40µs., leaving three bins (nearly) empty in between. With longer durations it can be seen that the mismatch with the 40µs grid slightly increases. This can be due to either the factor of 25 not being accurate, but more likely it can be a mismatch between the RFM69 crystal clock and the nucleo internal oscillator, leading to slight clock differences between the two components.

Conclusion

Internally the RFM69 samples the RSSI at 25 times the programmed bitrate to detect ON or OFF OOK signal. This knowledge can be useful in figuring out the optimal OOK settings for reception of different OOK signals in various formats and bitrates. For example when using one reciever for a light switch control system such as KAKU and Oregon Scientific temerature sensors.
